    GDONU300-4GWR Technical Specifications

    GDONU300-4GWR is launched to be oriented to multi-service integration network as an optical network unit device by ...

    Current position：HOME > PON

    GDONU300-4GWR Technical Specifications

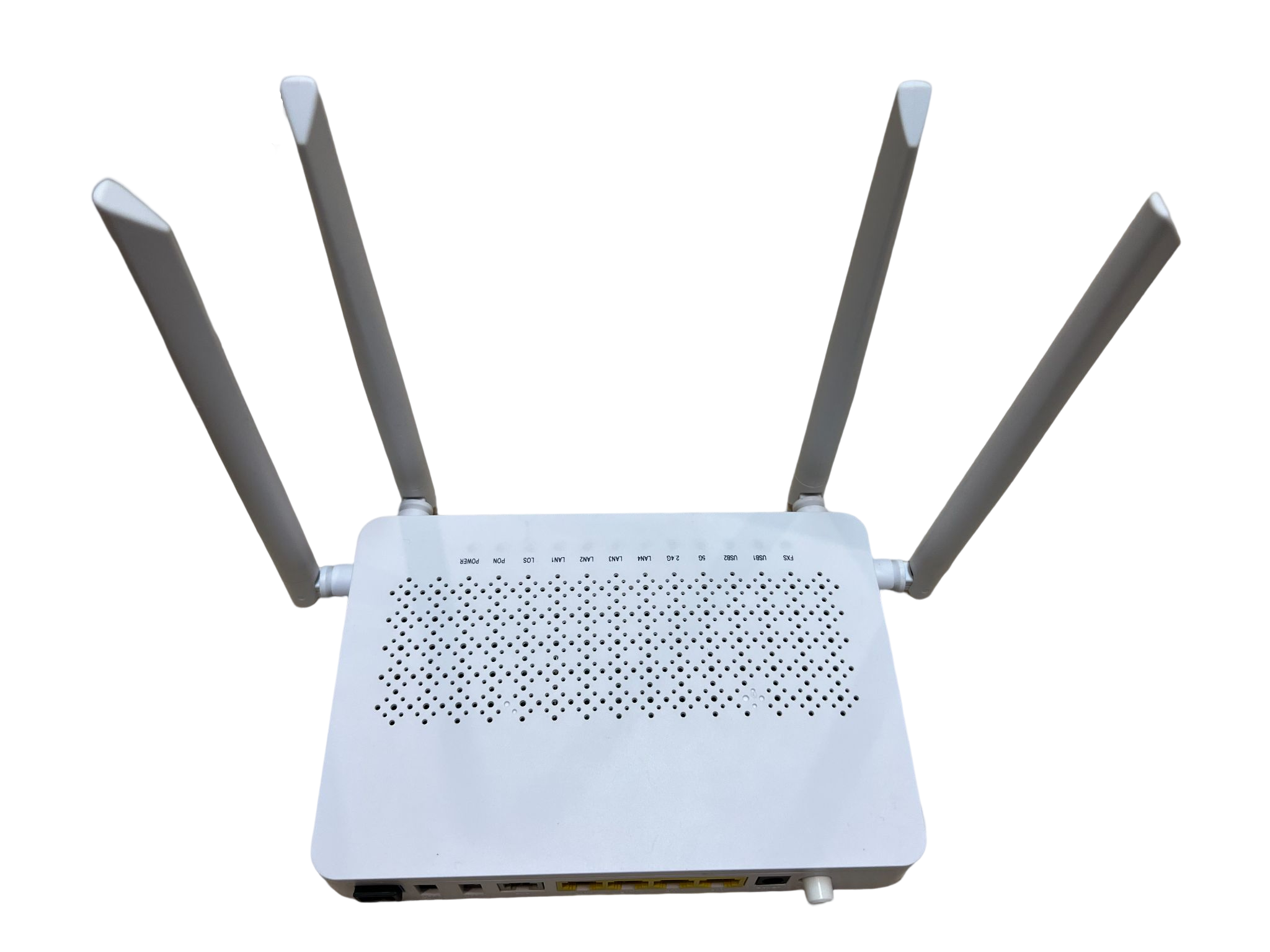

    Overview        GDONU300-4GWR is launched to be oriented to multi-service integration network as an optical network unit device by Lootom Telcovideo, which belongs to EPON SFU terminal for FTTH/O scenario. It configures four 10/100/1000Mbps ports, WiFi (2.4G+5G) port and USB interface that providing with high-speed data services and high-quality video services to users. Features              Intelligent interconnection
                  ● WiFi intelligence coverage
                  ● SIP/H.248 auto-adapting
                  ● Any port any service
                  ● Parental control
                  ● L2/L3(IPv4) re-transmission: 1G forward，2G backward
                 Properties for three layers
                  ● PPPoE/static IP/DHCP address access
                  ● NAT/NAPT
                  ● ALG,UPnP
                  ● DDNS/DNS server/DNS client
                  ● IPv6/IPv4 dual-stack,DS-Lite
                  ● Static route/default route
                 Multicast
                  ● IGMP v2/v3 snooping
                  ● IGMP v2 proxy
                  ● IGMP v3 proxy
                  ● MLD v1/v2 snooping
                 Qos
                  ● Ethernet port speed limit
                  ● 802.1p priority
                  ● SP/WRR/SP+WRR
                  ● Broadcast message speed limit
                 Security
                  ● SPI Firewall
                  ● MAC/IP/URL address filtering
                 O&M
                  ● OMCI/Web UI/TR069
                 Power saving
                  ● Indicator light energy-efficient
                  ● Timing switch Technical Specifications              Hardware parameters

    Dimension

    220mm x 150mm x 32mm (Without antenna)

    Weight

    420g

    Working environment temperature

    0℃～+40℃

    Working environment humidity

    5% RH～95% RH, non-condensing

    Power adapter input level

    90V～270V AC，50/60Hz

    Device power supply

    11V～14V DC，2 A

    Static power consumption

    7.5 W

    Maximum power consumption

    18 W

    Interfaces

    1POTS+4GE+Wi-Fi(2.4G+5G)+USB

    Indicator light

    POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS/CATV


                 Interface parameters








    PON interface

    • Class B+

    • -27dBm receiver sensitivity

    • Wavelength：upstream 1310nm，downstream 1490nm

    • Support WBF

    • Flexible mapping between GEM Port and TCONT

    • Authentication method: SN/password/LOID (GPON)

    • Two-way FEC (Forward error correction)

    • Support DBA for SR and NSR





    Ethernet port

    • Stripping based on VLAN Tag/Tag for Ethernet port.

    • 1:1 VLAN/N:1 VLAN/VLAN Pass-through

    • QinQ VLAN

    • MAC address limit

    • MAC address learning







    POTS interface

    • Maximum number for one port that joint-up connecting in parallel with Telephone：4 REN

    • Support G.711A/u，G.729a/b，G.722 CODEC

    • Support T.30/T.38 mode for fax

    • DTMF

    • Emergency calls protocol







    WLAN

    • IEEE 802.11 b/g/n

    • 2×2 MIMO

    • Antenna gain：5dBi

    • WMM (Wi-Fi multi media)

    • Multiple SSID multiple

    • WPS

    USB interface

    • USB2.0

    • Network storage according to FTP
